PV
RATED 1500 VDC SURGE
PROTECTION DEVICES
FEATURES
& BENEFITS |
- Maximum
discharge current
(8/20Qs): 40 kA
- Nominal
discharge current
(8/20Qs): 10 kA
20 kA
- Ucpv:
65, 80, 660, 1060
Vdc and 1500 Vdc
- Iscpv:
10 kA, 65 kA,
100 kA (UL 1449
4th Ed.)
- DIN-rail
mountable, plug-in
format
- Visual
and remote end
of life indicators
- Reversible
chassis to allow
cable entry from
above or below
- Mechanically
coded cartridges
to avoid cartridge
replacement errors
APPLICATIONS
STANDARDS
- EN
50539-11
- UL
1449 4TH Ed.
|
HELIOPROTECTION®HP15FHM32
SERIES
FUSEHOLDERS
FOR GPB FUSE-LINKS
HP15M |
RATINGS:
- Volts:
1500VDC Maximum
- Amps:
32ADC Maximum
- Power
Dissipation: 6.0
W Maximum
- SCCR:
50 kA DC
APPLICATIONS:
- All
utility scale
photovoltaic applications

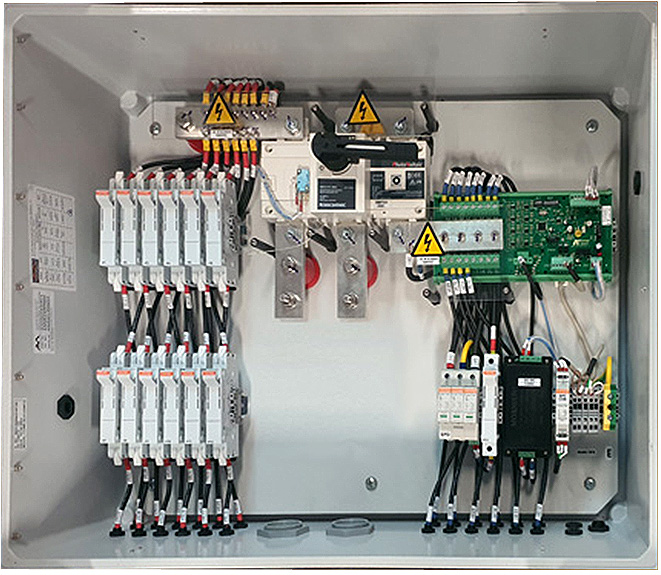

- 1500VDC
Combiner Boxes
APPROVALS:
- UL
428-19
- UCSA
22.2 No. 428.19
- IEC
60269-2
|
HELIOPROTECTION®FUSE-LINKS
GPV HP15M
1500VDC
MIDGET (10X85MM) |
RATINGS:
- Volts:
1500VDC
- Amps:
4A - 32A
- SCCR:
50 kA
Photovoltaic
Fuse
FEATURES/BENEFITS:
- Low
fault current
interrupting capability
- Durable
construction for
enchanced system
longevity
- Temperature
cycle withstand
capability
- Guaranteed
operation at temperature
extremes
- Globally
accepted
- Recommended
fuse holder: US15M1HEL
/ HP15FHM32
APPROVALS:
- UL
Listed to Standard
UL2579
- CSA
Component Pending
- IEC
60269-6
|
1500
PV-RATED DISCONNECT
SWITCH |
RATINGS:
- Volts:
1000 and 1500VDC
- Amps:
IEC: 100 to 500A,
UL98: 100 to 400A
- Short-Circuit
Current Rating
(SCCR): 5 to 10
kA for higher
ratings
FEATURES/BENEFITS:
- IEC
version and UL
version
- Visible
contacts
- Compact
footprint
APPROVALS:
- UL98B
File #E466972
WHVA
- IEC
60947-3 CE
|
|
|
|
|
|
|
|
|
