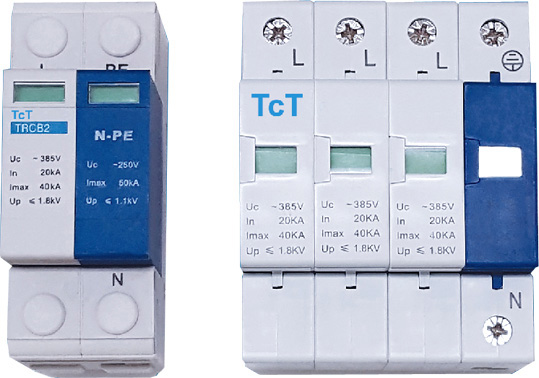

SURGE SUPPRESSOR (Class C)






Model No.:
TNR1-C20
No of Poles :
1P, 1P+N, 3P+N
Rated Voltage Un(V) :
220/380V
Rated Continuous Voltage Uc(V) :
275/320, 385/420
Voltage Protection Level Up (kV) :
<1.4/<1.5, <1.8/<1.9
Responding Time t(nS) :
<25nS
Temperature Range :
-40°C to +85°C
Norminal Discharge Current (8/20uS) In(kA) :
20kA
Maximum Current Capacity (8/20u S) Imax (kA) :
40kA
Type of Mounting :
Din Rail EN 50022
