| Based
Standards |
IEC
61008
|
INTERNATIONAL
ELECTRO TECHNICAL
COMMISSION |
MS
61008
|
MALAYSIAN
STANDARD |
| Approvals
/ Applications |
ST
|
SURUHANJAYA
TENAGA |
CB
TEST REPORT
|
INTERTEK
TESTING SERVICE |
SIRIM
|
STANDARDS
& INDUSTRIAL
RESEARCH INSTITUTE
OF MALAYSIA |
|
|

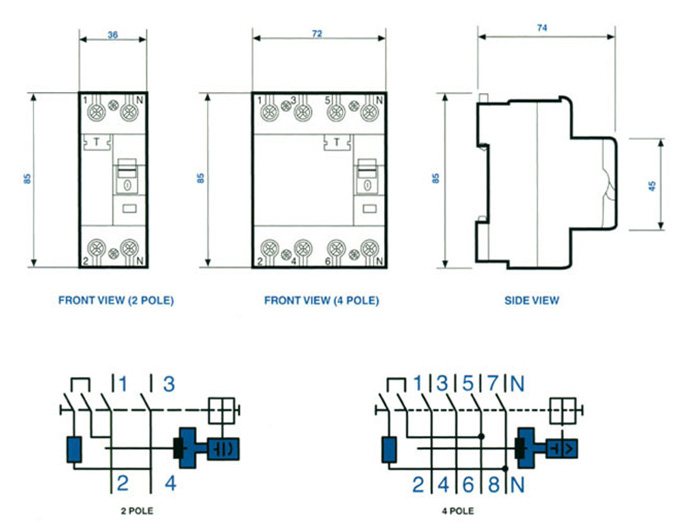

| Dimensions |
 |
| Technical
Data |
Design
according to
|
IEC
61008 |
Rated
voltage
|
240V~(2P),
415V~(4P) |
Nominal
current
|
16-63A |
No.
of pole
|
2,
4 |
Rated
sensitivity
(Ma)
|
10,
30, 100, 300 |
Tripping
time
|
Depends
on specification
<5XI n 40ms |
Frequency
|
50Hz/60Hz |
Temperature
|
-5°C
to +40°C |
Operating
characteristics
|
Type
AC with anti-nuisance
( ) |
Rated
breaking capacity
|
6kA |
Degree
of protection
|
IP40
(after installation
in board) |
Terminal
capacity
|
1-25mm
(6-63A) |
Life
expectancy
|
At
least 6000 operations |
Type
of mounting
|
DIN
rail EN 50022 |
|
|
|
|
|
|
|
|
|

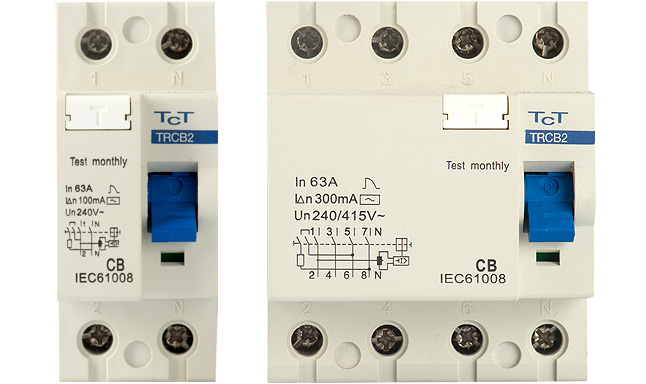

2/4 POLE
